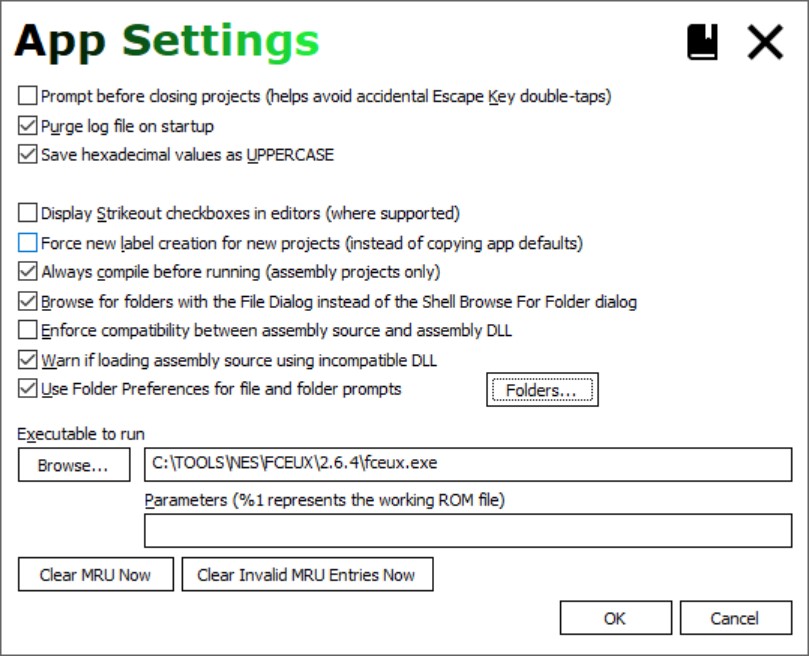

App Settings

Field	Detail
Prompt before closing	When checked, pressing escape displays a prompt to confirm closing the app.
Purge log on startup	Purge the log file on startup.
Save hex as UPPERCASE	In certain editors, hex values will save using uppercase digits.
Show background art	If unchecked, turn off the background images.
Display strikeout checkboxes	In some editors. checkboxes are replaced with strikethrough labels. Click the labels to toggle the strikethrough. This is a requested experimental feature that was left in and is off by default.
Force new label creation	Sets the default state of the same checkbox on the project creation windows.
Always compile before running	When the Run is clicked, Assembly projects will compile before running.
Browse with File Dialog	When checked, the File Dialog's folder picker UI is used to selected folders. When unchecked, the Shell Browse for Folder dialog is used instead. The option is checked by default to use a the File DIalog for folder selection (introduced in WIndows Vista).On XP, this is done via a hack of the file dialog.
Enforce Compatbility	EXPERIMENTAL This supersedes the Warn option below and if checked disables that option on the dialog. When checked, an attempt to create an assembly project will attempt to verifyif the assembly handling DLL recognizes the format of the Assembly zip being used to create the project. If that check fails, then project creation fails. The check is defined by the assembly handling DLL, not the FFHacksterEx executable.
Warn if loading incompatbile ASM DLL	EXPERIMENTAL Similar to the Enforce option above, but instead of blocking project creation ona failed check it displays a modal warning message before continuing.
Folders	Define folder preferences, which are default folders used with various prompts throughout the program. The "Use Folder preferences" check box toggles the preferences; if unchecked, then the last directory that was OK'd will be used for the next file or folder prompt. See the section below regarding Folder Preferences.
Executable to run	The run command will attempt to run the specified executable. Click Browse to select the executable to run. Parameters are specified in the designated edit control. If left blank, then the working ROM filepath is passed as the only parameter. Otherwise, use %1 to indicate where in the params to pass the working ROM filepath. e.g. C:\TOOLS\FCEUX\2.2.3\fceux.exe Invoke FCEUX with the working ROM file passed as the game to load C:\TOOLS\FCEUX\2.2.3\fceux.exe %1 Invoke FCEUX with the working ROM file passed as the game to load C:\TOOLS\NES\MESEN\0.9.9\Mesen.exe %1 /VideoScale=2 /DoNotSaveSettings Invoke Mesen with the working ROM file, video scaled by 2x, and don't save the settings specified on this command line to the Mesen config file.
Clear MRU Now	Removes all entries from the right-click MRU for the Welcome Screen's Open Project button.
Clear Invalid MRU Entries Now	Removes filepaths that don't exist from the right-click MRU for the Welcome Screen's Open Project button.

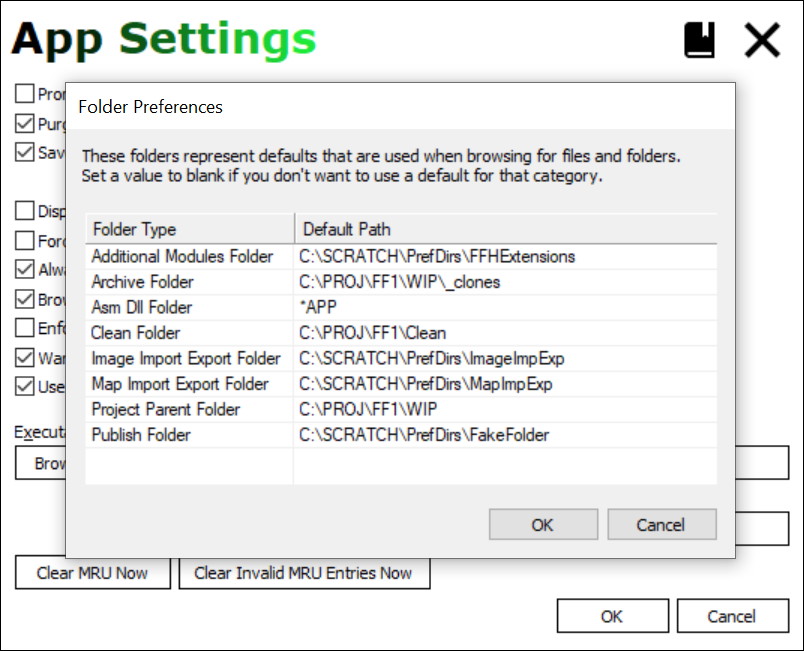

Folder Preferences

These folders are used as defaults for the specified types of prompts.

All of these folder settings are optional; if unspecified, the prompts will typically use the folder from the most recent prompt dialog.

NOTE: Set a path to the placeholder to the path *APP to use the application folder.

This allows copying the application folder to another location without having to adjust the paths stored in settings to accommodate the move.

Folder Type	Detail
Additikonal Modules	If using Extensions, then this is a folder where the application can search to find modules that you want to share between projects.
Archive	Used with the Archive command, this is the default folder where project archives will be stored and searched.
Asm Dll	Where to look when prompting for an assembly DLL. When unspecified, the program folder is used.
Clean	Looks here for clean copies of ROM files and Assembly zips.
Image Export/Export	Saves and loads images exported from various dialogs (e.g maps).
Map Import/Export	Saves and loads map data files to this directory.
Project Parent	The parent directory used for operations that prompt for one. For example, project creation.
Publish	Folder used with the Publish command. That command copies the working ROM to an output filename in this folder.

project-settings]=[

Project Settings

There is a slight difference between ROM and Assembly projects.

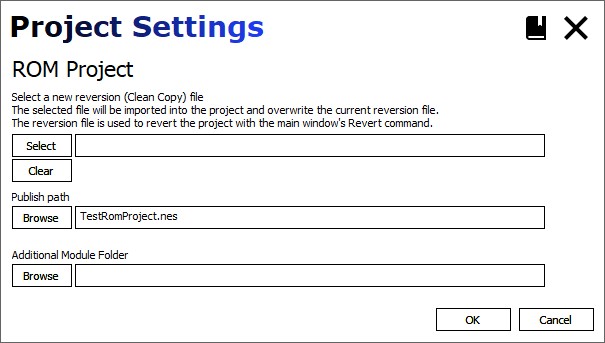

ROM projects

Field	Detail
Select new reversion file	Pick a new "clean copy" ROM file to use with the Revert command.
Publish Path	If specified, the Publish command copies the working ROM (with all of your changes) to this filepath.
Additional Modules Folder	If specified, the app will also look here for extensions.

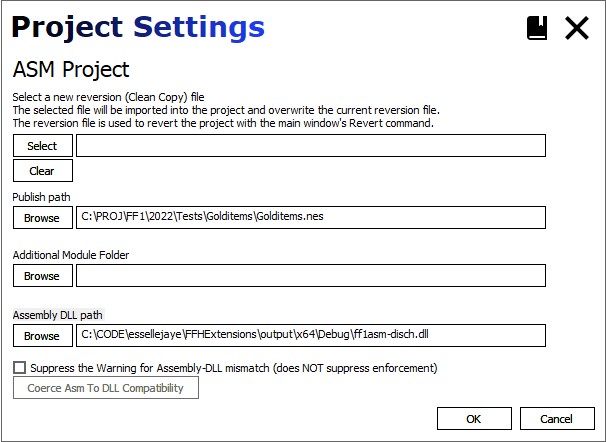

Assembly projects

Field	Detail
Select new reversion file	Pick a new "clean copy" assembly ZIP file to use with the Revert command.
Publish Path	If specified, the Publish command copies the working ROM (with all of your changes) to this filepath.
Additional Modules Folder	If specified, the app will also look here for extensions.
Assembly DLL path	The assembly DLL used for the project. Note that this is available for those implementing new assembly handling DLLs. If you're just authoring an assembly project, then you can ignore this field.
Suppress Assembly-DLL mismatch warning	EXPERIMENTAL When checked, this project will suppress any warning that would otherwise occur when the version of the project assembly source (in the .asmtype file it it exists) doesn't match the version of the Assembly DLL used by the project.

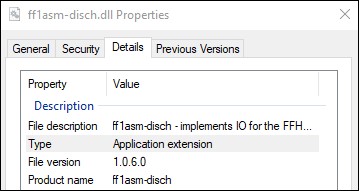

Coerce Asm to DLL compatibility	EXPERIMENTAL If the source and DLL are mismatched, then this button will be active. In that case, clicking it will backup the existing .asmtype file in the assembly source folder, then update it with the asmtype version of the project's Assembly DLL. That will eliminate future warnings. Note that this does NOT update or alter the actual assembly source code in any way. It just updates the .asmtype file to eliminate the warning. You'll have to work out any difficulties or discrepancies by manually comparing the assembly source of the project to that of the version supported by the Assembly DLL. The Assembly DLL version can be determined in File Explorer by examining the file's properties (the File Version field on the Details tab).

battle-settings]=[Battle Editor Settings

Battle Editor Settings

Field	Detail
View Usage	View the places where this battle is used. Includes sprite-initiated battles, spiked tile battles,Standard map encounters, and Overworld encounters. Note This usage denotes where the battle formation is used, but does not indicate if the battle is effectively used. For example, if battle 40 is assigned to Sprite 4F, then Sprite 4F will appear in the View Usage window. However, Sprite 4F might not be used on any maps in the game.

Field

Detail

View Usage

View the places where this battle is used.

Includes sprite-initiated battles, spiked tile battles,Standard map encounters, and Overworld encounters.

Note

This usage denotes where the battle formation is used, but does not indicate if the battle is effectively used.

For example, if battle 40 is assigned to Sprite 4F, then Sprite 4F will appear in the View Usage window. However, Sprite 4F might not be used on any maps in the game.

class-settings]=[Class Editor Settings

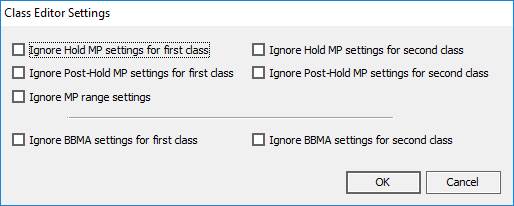

Classes Editor Settings

Field	Detail
Ignore Hold MP settings	When checked, the code that handles Hold MP is ignored. Checked, this means that class indexes 0 and/or 1 can use magic. Unchecked: they wont't start with or gain spell charges. NOTE: Remember to include these classes in the Classes Editor's Starting MP range if you want them to have starting spell changes (not needed if Ignore MP Range below is also checked).
Ignore Post HoldMP settings	When checked, the Post Hold MP code is ignored. Checked: class indexes 6 and/or 7 will use the standard spell charge limit. Unchecked: they'll use the Post HoldMP spell charge max in the Classes editor.
Ignore MP Range	If checked, then the Classes Editor's Starting MP range dropdowns are disabled, and all classes will start with spell charges.
Ignore BBMA	If checked, then BBMA adjustments are not made (damage, hit%, crit rate, absorb, hit count). This effectively turns the BB and MA into standard classes like the other 10. Note that while the 2x Hits are separate from Class Bonuses in the Classes editor, both respect this option.

enemy-settings]=[Enemy Editor Settings

Enemies Editor Settings

Field	Detail
Enemy Byte 15 name	The text used for the label on the Byte 15 edit group.
Show as flags	If checked, the byte is represented by 8 check boxes; else, it's a hexadecimal value (0-FF).
View Usage	View the places where this enemy is used. Includes sprite-initiated battles, spiked tile battles,Standard map encounters, and Overworld encounters. Note This usage denotes battles where the enemy appears, but does not indicate if either the battle or enemy is effectively used. For example, if enemy 61 is assigned to battle 40 and has a non-zero count, then View Usage will display that battle, even if the battle is never used on the Overworld or any Standard map.

magic-settings]=[Magic Editor Settings

Magic Editor Settings

Field	Detail
Magic Byte 7 name	The text used for the label on the Byte 7 text field in the editor.

sprite-dialogue-settings]=[Sprite Dialogue Editor Settings

Sprite Dialogue Settings

Field	Detail
Show actual text	When checked, shows in-game text; otherwise, shows the LABEL for the text.
Length	The maximum length for dialogue text shown in the grid; longer text is truncated to this length.
Throw if ... invalid handler	When checked, the editor will fail to load if any sprite has an invalid handler or if there are discrepancies between the routines idenfied in the dialogue INI file and the game. This option is unchecked by default.

NOTE: fields in tables with this tinted background and italicsrequire a specific assembly ZIP archive for Assembly projects to work properly. By default, this is the annotated Disch Assembly.
